SAMARSAT®

Battle Ready Satcom Solutions



Features:

  • Ku-Band Maritime Antenna: Designed for high-frequency satellite communication in the Ku-Band spectrum.
  • 4-Axis Stabilization: Ensures stable tracking and pointing during movement or platform shifts.
  • Keyhole-Free Performance: Eliminates signal loss in the zenith region, ensuring continuous coverage.
  • Integrated System: Antenna Controller, Receiver Signal Strength Indicator (RSSI), LNBC, BUC.
  • Baseband Compatible: Supports interface with compact and portable baseband equipment.

Azimuth Range – 360° Continuous

Elevation Range – (-15°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

Ku – 53


Specification



Configuration



Dish Diameter53cm / 20.86″
Radome Diameter60cm (23.62″)
Weight40 Kg
FrequencyRx: 10.95 – 12.75 GHz
Tx: 13.75 – 14.50 GHz
Antenna GainRx Gain: 34.6 dBi @ 11.75 GHz
Tx Gain: 36.3 dBi @ 14.25 GHz
G/T15.26 dB/K @ 11.75 GHz
PolarizationLinear (H.V)
BUC8 W
EIRP45.3 dBW



Features:

  • Land Mobile Terminal : Designed for deployment on ground vehicles and mobile platforms.
  • Communication-on-the-Move (COTM): Enables uninterrupted connectivity while in motion.
  • Ideal for Tactical and Combat Use: Engineered for high-priority and mission-critical operations.
  • Handles High Angular Motion: Capable of maintaining stable links during rapid movement and dynamic conditions.



Azimuth Range – 360° Continuous

Elevation Range – (-15°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

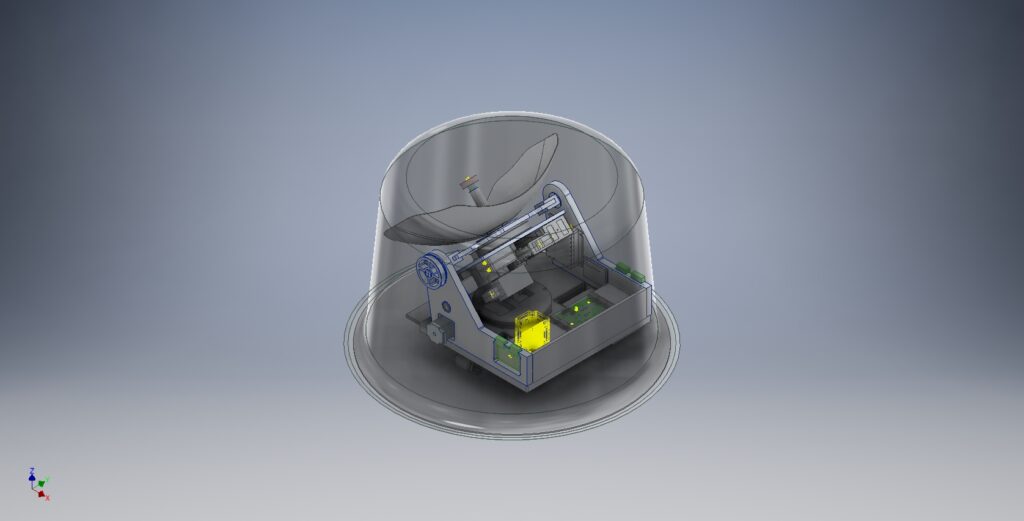

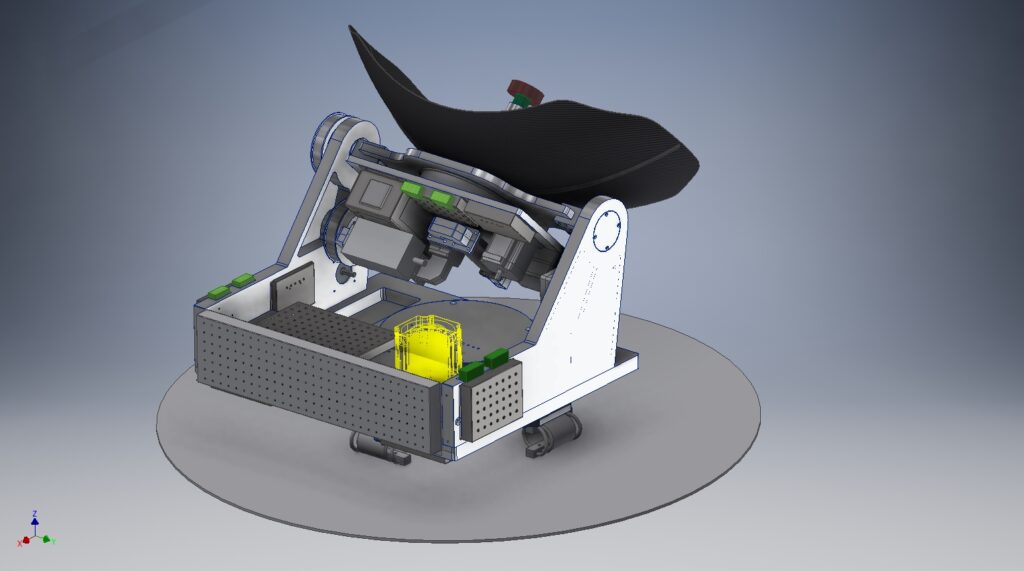

Ku – 60E


Specification



Configuration



Dish Size35 x 60cm / 13.77 x 23.62″
Radome Size95cm (37.4″)
Weight50 Kg
FrequencyRx: 10.95 – 12.75 GHz
Tx: 13.75 – 14.50 GHz
Antenna GainRx Gain: 33.4 dBi @ 11.75 GHz
Tx Gain: 35.1 dBi @ 14.25 GHz
G/T14.00 dB/K @ 11.75 GHz
PolarizationLinear (H.V)
BUC8 W
EIRP44.1 dBW



Features:

Ku Band Satcom Antenna

4 Axis Stabilization

Eliminates Key Hole

Antenna Controller, Receiver Signal

Strength Indicator (RSSI), LNBC, BUC



Application Areas:

Medium to Large size ships

Cruise ships and Yacht

Vehicle Mounted SOTM



Azimuth Range – 360° Continuous

Elevation Range – (-10°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

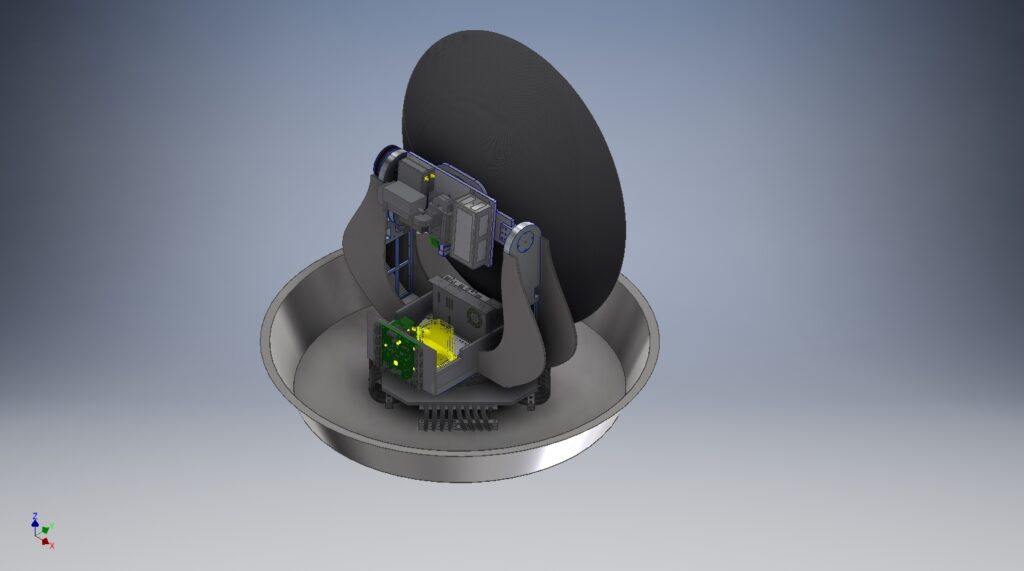

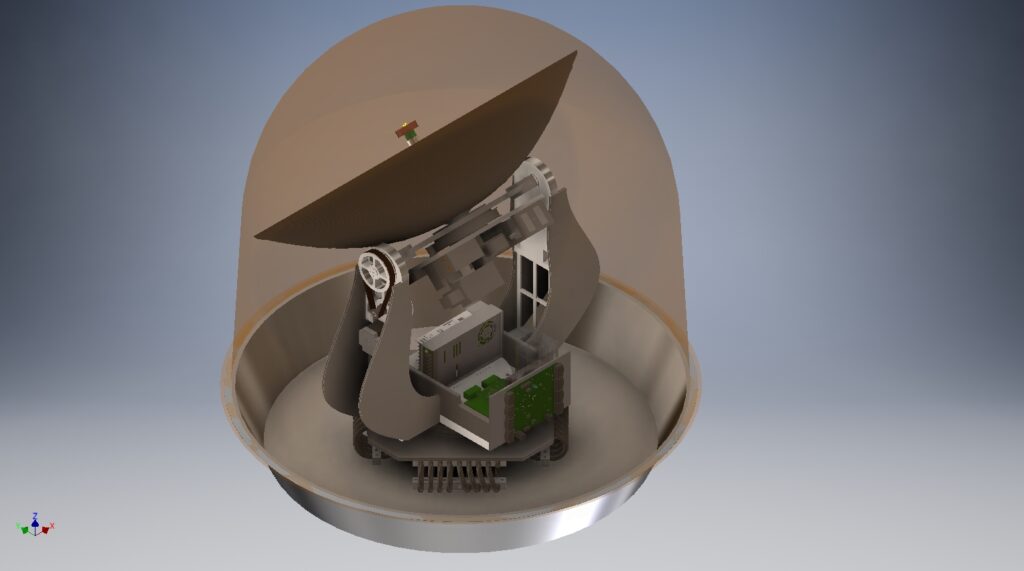

Ku – 85



Specification





Configuration



Dish Size85cm (33.4″)
Radome Size100cm (39.3″)
Weight120 Kg
FrequencyRx: 10.95 ~ 12.75 GHz
Tx: 13.75 ~ 14.50 GHz
Antenna GainRx Gain: 37.4 dBi @ 12.7 GHz
Tx Gain: 38.4 dBi @ 14.25 GHz
G/T17 dB/K @ 12.70 GHz
PolarizationLinear (H.V)

Features:

  • Ku-Band Operation: Designed for high-frequency satellite communication in the Ku-Band spectrum.
  • Dual-Offset Gregorian Design: Reduces blockage and enhances antenna efficiency and gain.
  • 3-Axis Stabilization: Ensures stable tracking and pointing during movement or platform shifts.
  • Keyhole-Free Performance: Eliminates signal loss in the zenith region, ensuring continuous coverage.
  • Integrated System: Antenna Controller, Receiver Signal Strength Indicator (RSSI), LNBC, BUC.
  • Baseband Compatible: Supports interface with compact and portable baseband equipment.



Azimuth Range – 360° Continuous

Elevation Range – (-15°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

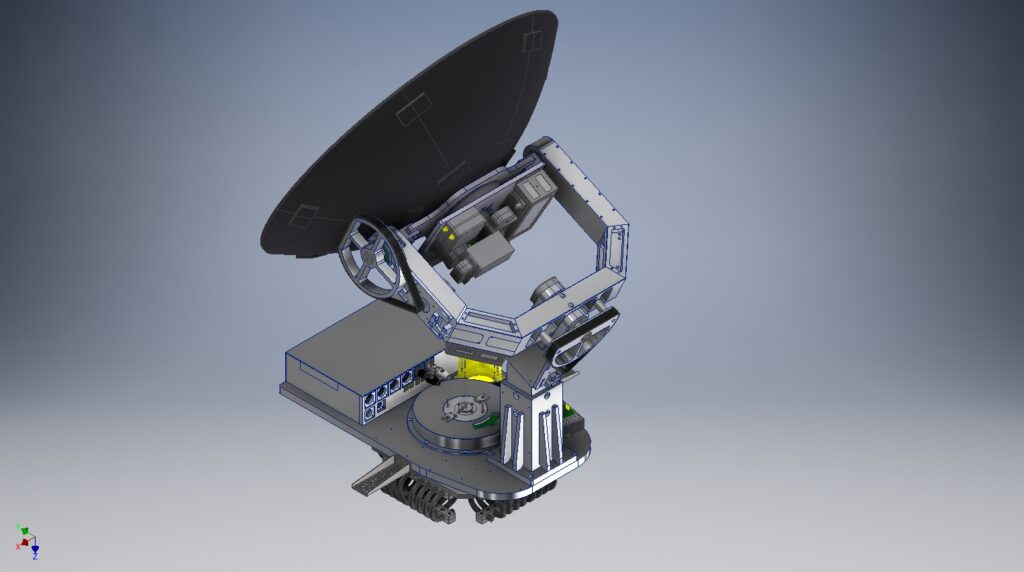

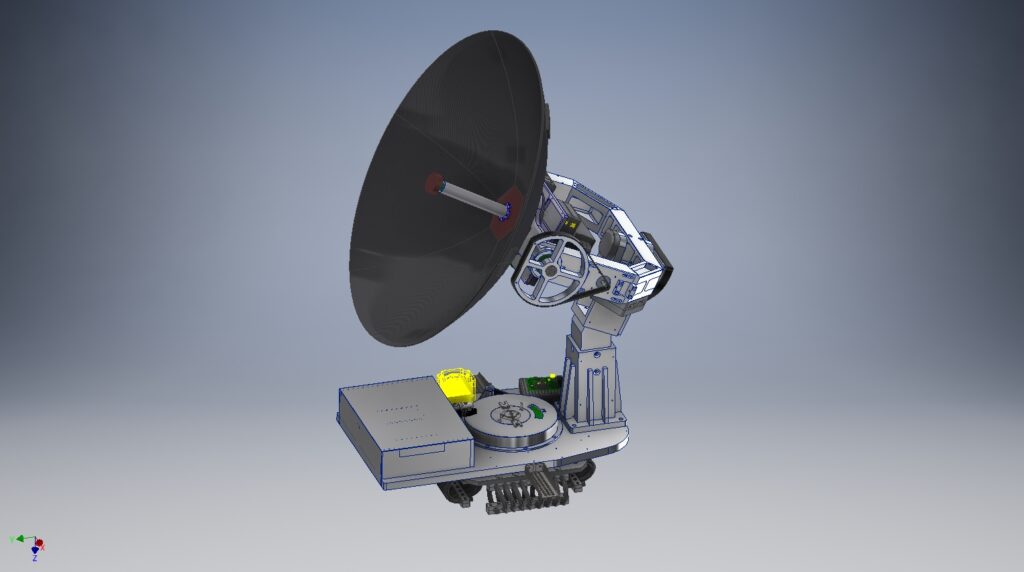

Ku – 120


Specification



Configuration



Dish Size120cm / 47.24″
Radome Size140cm (55.11″)
Weight140 Kg
FrequencyRx: 10.95 – 12.75 GHz
Tx: 13.75 – 14.50 GHz
Antenna GainRx Gain: 41.7 dBi @ 11.75 GHz
Tx Gain: 43.4 dBi @ 14.25 GHz
G/T22.3 dB/K @ 11.75 GHz
PolarizationLinear (H.V)
BUC8 W
EIRP52.4 dBW

Features:

  • Ku-Band Operation: Designed for high-frequency satellite communication in the Ku-Band spectrum.
  • Dual-Offset Gregorian Design: Reduces blockage and enhances antenna efficiency and gain.
  • 3-Axis Stabilization: Ensures stable tracking and pointing during movement or platform shifts.
  • Keyhole-Free Performance: Eliminates signal loss in the zenith region, ensuring continuous coverage.
  • Integrated System: Antenna Controller, Receiver Signal Strength Indicator (RSSI), LNBC, BUC.
  • Baseband Compatible: Supports interface with compact and portable baseband equipment.



Azimuth Range – 360° Continuous

Elevation Range – (-15°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

Ku – 180


Specification



Configuration



Dish Size180cm / 70.86″
Radome Size140cm (55.11″)
Weight200 Kg
FrequencyRx: 10.95 – 12.75 GHz
Tx: 13.75 – 14.50 GHz
Antenna GainRx Gain: 45.3 dBi @ 11.75 GHz
Tx Gain: 46.9 dBi @ 14.25 GHz
G/T25.8 dB/K @ 11.75 GHz
PolarizationLinear (H.V)
BUC8 W
EIRP55.9 dBW

Features:

  • Ku-Band Operation: Designed for high-frequency satellite communication in the Ku-Band spectrum.
  • Cassegrain Design: Offers high gain and compact form factor, ideal for long-range communication.
  • 3-Axis Stabilization: Ensures stable tracking and pointing during movement or platform shifts.
  • Keyhole-Free Performance: Eliminates signal loss in the zenith region, ensuring continuous coverage.
  • Integrated System: Antenna Controller, Receiver Signal Strength Indicator (RSSI), LNBC, BUC.
  • Baseband Compatible: Supports interface with compact and portable baseband equipment.



Azimuth Range – 360° Continuous

Elevation Range – (-15°) to (+110°)

Cross Elevation Range – (-30°) to (+30°)

Skew Range – Automatic

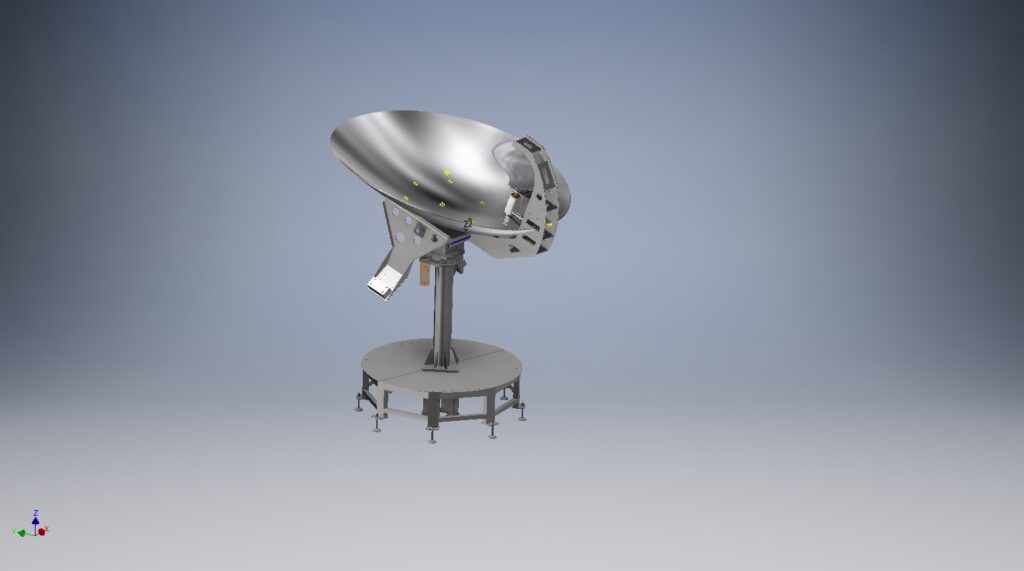

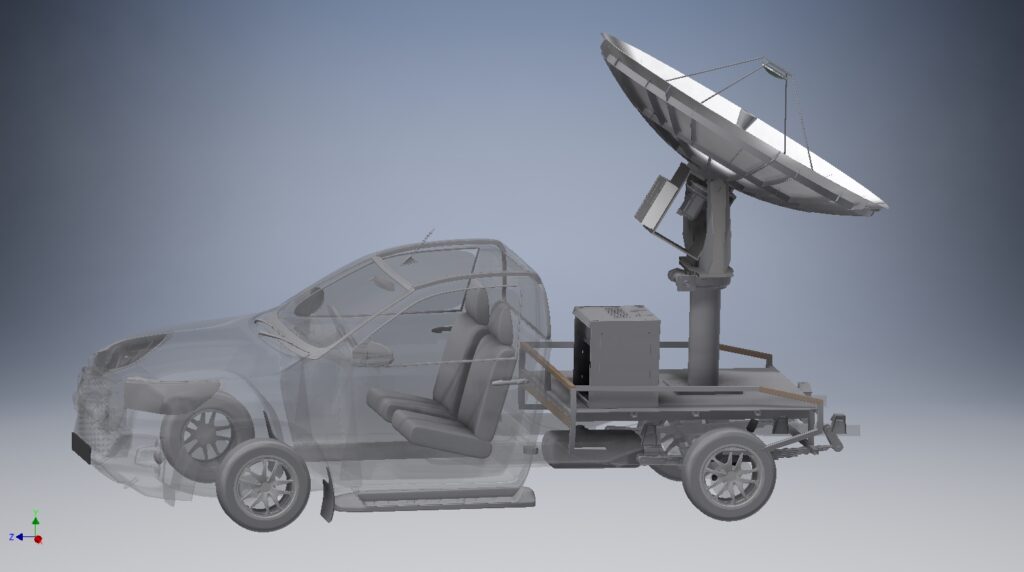

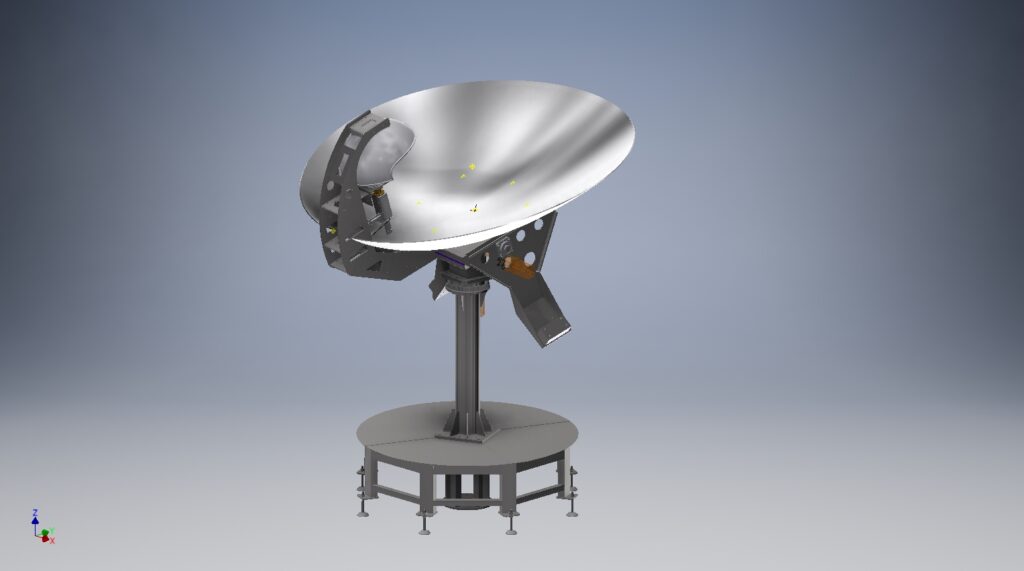

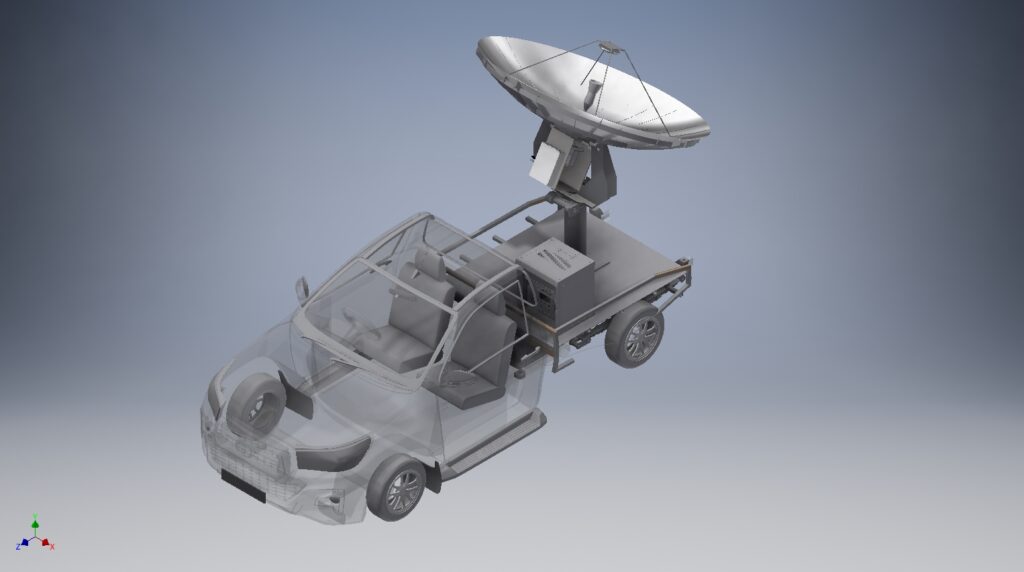

Ku – 240


Specification



Configuration



Dish Size240cm / 94.48″
Radome Size260cm (102.36″)
Weight400 Kg
FrequencyRx: 10.95 – 12.75 GHz
Tx: 13.75 – 14.50 GHz
Antenna GainRx Gain: 47.8 dBi @ 11.75 GHz
Tx Gain: 49.4 dBi @ 14.25 GHz
G/T28.3 dB/K @ 11.75 GHz
PolarizationLinear (H.V)
BUC8 W
EIRP58.5 dBW
